Have you ever wondered how electricity travels across continents, seamlessly connecting countries and powering economies? Furthermore, the answer lies in undersea electricity cables, which serve as vital lifelines for intercontinental energy transmission. In this article, we will explore the fascinating world of undersea electricity cables, their significance, the process of laying them, their benefits and challenges, notable projects, and future developments in this field.

Introduction

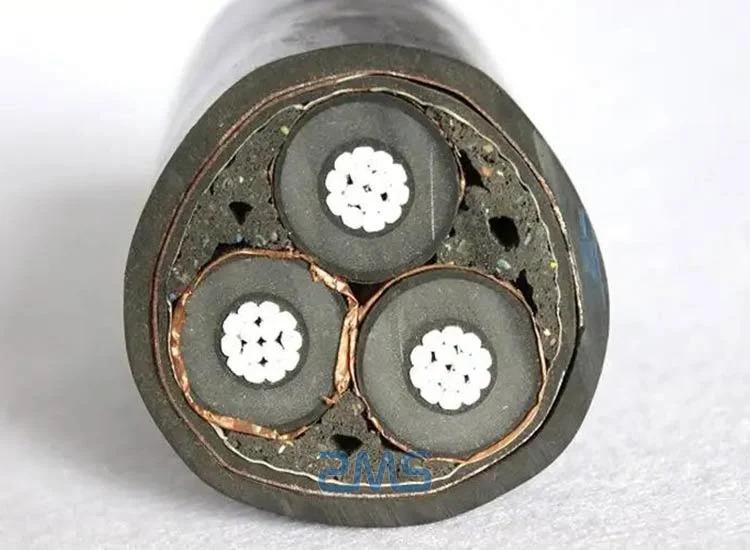

Submarine Power Cables

Electricity has become an indispensable part of our daily lives, driving industries and enabling communication and connectivity. Moreover, as the electricity demand grows, the need for efficient and reliable transmission methods becomes crucial. Undersea electricity, submarine, or subsea cables are pivotal in fulfilling this need by connecting power grids between continents.

What Are Undersea Electricity Cables?

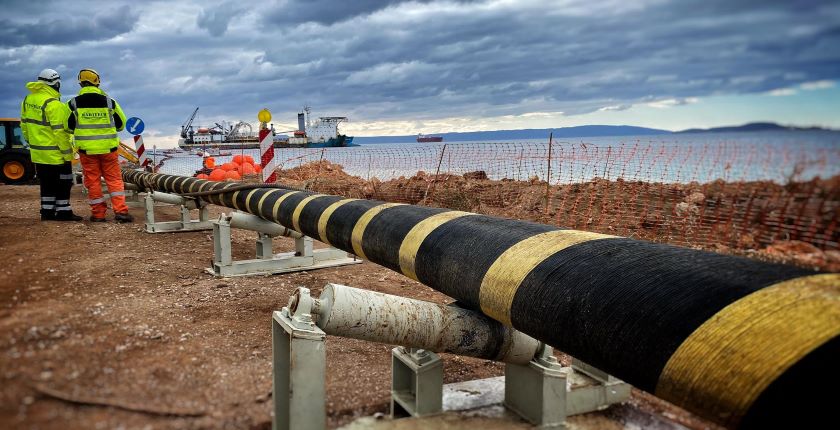

Undersea Electricity Cables

Undersea electricity cables are specialized transmission lines that carry electrical power across bodies of water, such as oceans and seas. They play a crucial role in facilitating the exchange of electricity between countries, islands, and offshore installations. Moreover, these cables are designed to withstand the harsh underwater environment while efficiently transmitting electrical energy over long distances.

Typically composed of multiple layers, undersea electricity cables consist of a conductive core made of copper or aluminum, which serves as the pathway for the electric current. Also, this core is insulated to prevent electrical leakage and protect against the surrounding seawater. Surrounding the insulation is a protective layer that shields the cable from mechanical damage, corrosion, and marine life interactions.

Undersea electricity cables are carefully laid on or buried beneath the seabed to ensure uninterrupted power transmission. They are anchored to the ocean floor to maintain stability and prevent movement due to water currents or natural disturbances. These cables are engineered to withstand extreme pressures, temperature variations, and potential impacts from fishing activities or natural disasters.

Undersea electricity cables are essential for connecting power grids between countries and regions, enabling the exchange of electricity and supporting energy diversification. They provide a reliable and efficient means of transmitting large amounts of power over long distances, overcoming geographical barriers, and enabling the integration of renewable energy sources.

The Significance Of Undersea Electricity Cables

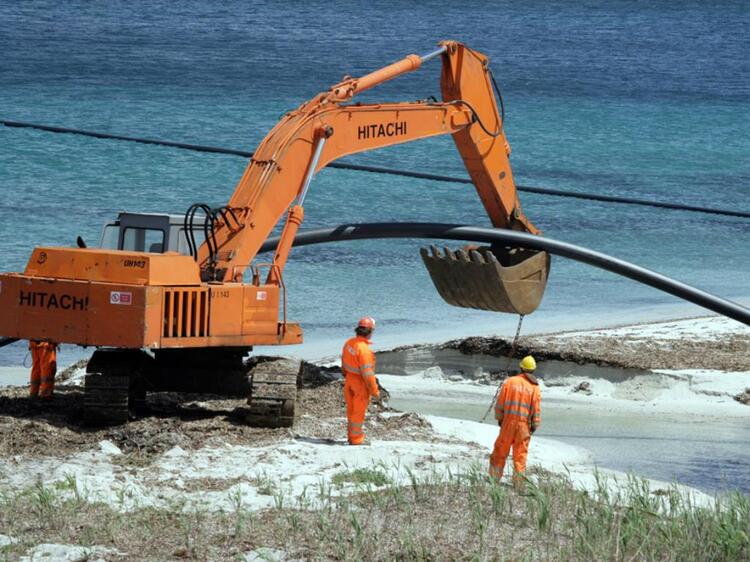

Undersea Electrical Transmission Cable

Undersea electricity cables play a crucial role in our interconnected world, facilitating efficient and reliable electrical power transmission across vast distances beneath the ocean’s surface. These cables serve as lifelines, connecting continents, nations, and islands, and their significance can be described in three key aspects: energy integration, renewable energy expansion, and global interconnectivity.

Energy Integration

Firstly, undersea electricity cables enable energy integration by linking power grids and facilitating the exchange of electricity between regions. This interconnection enhances energy security, allowing countries to rely on neighboring sources during high demand or unexpected outages. It promotes economic cooperation, enabling the sharing of surplus energy and the establishment of regional energy markets. Moreover, undersea cables allow remote and untapped energy resources to be utilized, unlocking the potential for renewable energy generation in offshore locations.

Renewable Energy Expansion

Secondly, undersea electricity cables play a pivotal role in expanding renewable energy. Offshore wind farms, for instance, can be connected to onshore grids through these cables, effectively transporting clean and sustainable power to population centers. This integration of offshore renewable energy sources contributes to the decarbonization of electricity systems, reducing reliance on fossil fuels and mitigating climate change. Undersea cables accelerate the transition toward a sustainable and low-carbon future by facilitating the efficient transmission of renewable energy.

International Cooperation

Lastly, undersea electricity cables foster global interconnectivity, promoting collaboration and cooperation between nations. They facilitate international power trading, allowing countries to share their energy resources and reduce dependence on a single source. Establishing intercontinental cables creates energy corridors, strengthening diplomatic ties and fostering economic growth. Moreover, these cables support the development of remote regions, providing access to reliable and affordable electricity for island communities and isolated coastal areas.

The Process Of Laying Undersea Electricity Cables

Electricity Cable

Laying undersea electricity cables involves a meticulous and technologically advanced process to ensure reliable and efficient electrical power transmission across vast oceanic distances. The process can be summarized in the following steps:

Planning And Surveying

Extensive planning and surveying are conducted to determine the most suitable route for the undersea cable. Factors such as water depth, seabed conditions, marine ecology, and existing infrastructure are considered to minimize environmental impact and maximize operational efficiency.

Cable Manufacturing

Specialized manufacturing facilities produce undersea electricity cables. These cables are designed to withstand the harsh underwater environment, including corrosion, pressure, and temperature fluctuations. Multiple layers of insulation and protection are added to ensure the cable’s durability.

Preparing The Cable Ship

A cable ship, designed explicitly for cable-laying operations, is equipped and prepared for the task. This includes installing cable storage tanks, cable handling equipment, and specialized machinery required for the installation process.

Cable Loading

The manufactured cables are loaded onto the cable ship in large, carefully arranged cable tanks. These tanks allow for controlled cable payout during laying, ensuring the wires are not damaged during transportation.

Cable Route Preparation

Before cable laying can begin, the cable ship surveys the designated route again, using advanced sonar and other mapping technologies. This allows for accurate positioning and identification of any obstacles or hazards that need to be avoided during installation.

Cable Laying

The cable ship starts laying by deploying the cable from the cable tanks. The line is fed into a submersible plow or a remotely operated vehicle (ROV), which buries the cable into the seabed or lays it on the ocean floor. The plowing method helps protect the line from external forces and minimizes the risk of damage.

Cable Protection

In areas where the cable is exposed, additional measures are taken to protect it from potential damage caused by fishing activities, anchor dragging, or natural occurrences. These protective measures include burying the cable deeper, using concrete mattresses, or installing specialized defensive structures.

Cable Landfall And Connection

The cable is brought ashore at the desired landing point and connected to the onshore electrical infrastructure. This requires meticulous work, including jointing and termination, to ensure a seamless electrical connection.

Testing And Commissioning

After the cable is connected, it undergoes comprehensive testing to verify its integrity and performance. Various electrical tests ensure the line meets the required specifications and can safely transmit electricity.

Operation And Maintenance

Once the undersea electricity cables are commissioned, they become an integral part of the electrical grid, transmitting power between different locations. Regular monitoring, maintenance, and repair activities are carried out to ensure the cables operate reliably over their expected lifespan.

Laying undersea electricity cables involves a combination of engineering expertise, specialized equipment, and meticulous planning to establish crucial connections that enable the efficient and sustainable transmission of electrical power across vast stretches of the ocean floor.

Benefits And Challenges Of Undersea Electricity Cables

Electric Cable Undersea

Undersea electricity cables offer numerous benefits as a means of transmitting electrical power across bodies of water. However, their installation and maintenance also pose specific challenges. Here is a concise overview of the advantages and difficulties associated with undersea electricity cables:

Benefits
  1. Efficient Power Transmission. Undersea cables enable efficient electricity transmission over long distances, connecting power generation sources with consumption centers. They eliminate the need for intermediate conversion steps, reducing energy losses and ensuring a reliable power supply.
  2. Renewable Energy Integration. Undersea cables facilitate the integration of renewable energy sources, such as offshore wind farms, by efficiently transporting the clean electricity they generate to the onshore grid. This helps diversify the energy mix and reduce reliance on fossil fuels.
  3. International Power Interconnections. Undersea cables enable cross-border power interconnections, fostering energy cooperation between neighboring countries. Also, this allows for sharing electricity resources, balancing supply and demand, and improving grid stability and resilience.
  4. Minimal Land Disruption. Opting for undersea transmission reduces the need for extensive land-based infrastructure, such as overhead power lines. Also, this minimizes visual impact, land use conflicts, and the need for acquiring rights-of-way.
  5. Enhanced Reliability. Undersea cables, when properly designed and maintained, can provide a reliable means of power transmission. They are protected from weather-related disruptions, such as storms or lightning, and are less susceptible to human interference or damage.
Challenges

Giant Undersea Electricity Cables

  1. Installation Complexity. Installing undersea electricity cables requires specialized vessels, equipment, and skilled personnel. Meanwhile, the process involves navigating challenging marine environments, dealing with unpredictable weather conditions, and addressing potential risks to cable integrity.
  2. High Initial Costs. Undersea cable projects involve significant upfront investments due to the specialized nature of the equipment and installation process. Manufacturing, laying, and protecting the cables and associated onshore infrastructure costs can be substantial.
  3. Maintenance And Repair. Maintaining and repairing undersea cables can be logistically complex and expensive. Specialized vessels and equipment are required to access and repair cables at considerable depths. Identifying and fixing cable faults can be time-consuming and may temporarily disrupt power transmission.
  4. Environmental Impact. The installation and operation of undersea cables can have localized ecological impacts. Careful consideration must be given to potential disturbances to marine ecosystems during installation, and ongoing monitoring is necessary to assess any long-term effects on marine life.
  5. Cable Damage Risks. Undersea cables can be vulnerable to damage caused by human activities, such as fishing, anchoring, or unintentional cable strikes during offshore construction. Mitigation measures, such as cable burial or protective structures, must be implemented to minimize these risks.

Examples Of Undersea Electricity Cable Projects

Numerous undersea electricity cable projects have been undertaken worldwide to establish crucial connections for power transmission across bodies of water. Here are a few notable examples showcasing the diverse applications and benefits of undersea cable projects:

North Sea Link (NSL)

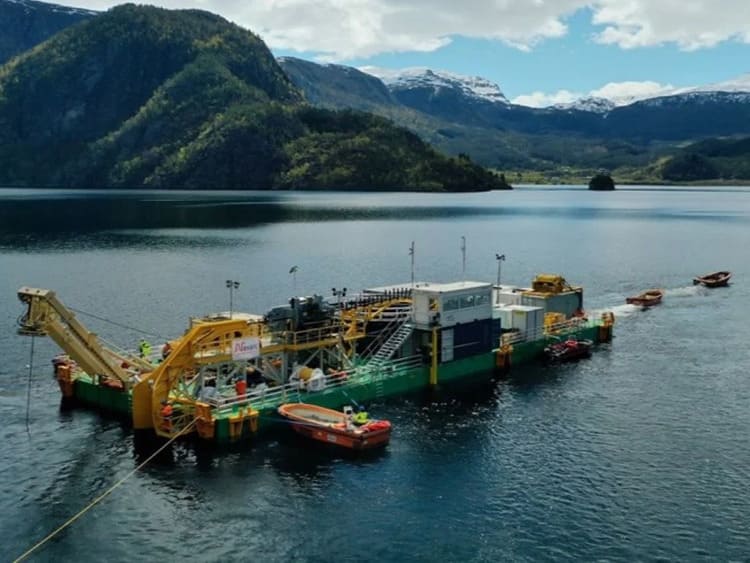

North Sea Link (NSL)

The NSL is a pioneering project connecting the electricity grids of the United Kingdom and Norway through a 720-kilometer undersea cable. Moreover, this interconnector enables the exchange of renewable energy, linking the abundant wind resources of the North Sea with Norway’s hydropower capacity. Also, itt enhances energy security, promotes renewable energy integration, and facilitates cross-border electricity trading.

Baltic Cable

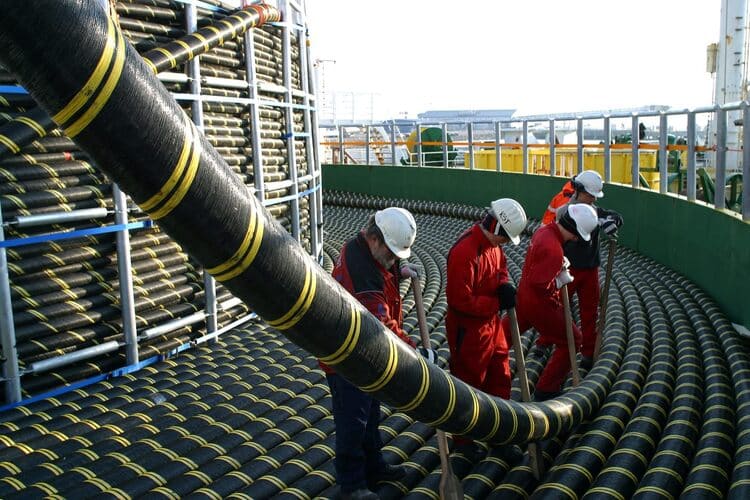

Baltic Cable

The Baltic Cable is a submarine cable system connecting the electrical grids of Germany and Sweden. Furthermore, spanning approximately 250 kilometers across the Baltic Sea, it enables the exchange of power and the integration of renewable energy resources. The Baltic Cable is vital to the European energy network, fostering regional cooperation and enhancing grid stability.

Basslink

Basslink

The Basslink project in Australia established an undersea electricity cable between the island state of Tasmania and the mainland grid. This interconnector, spanning over 370 kilometers under the Bass Strait, allows for the reliable transfer of electricity, facilitating supply-demand balance and providing access to mainland energy resources. Also, it enhances energy reliability, supports renewable energy development, and improves market competition.

IFA2

IFA2The IFA2 project connects the electricity grids of the United Kingdom and France through a 240-kilometer undersea cable beneath the English Channel. This interconnector enhances energy diversification, enabling the exchange of low-carbon electricity between the two countries. It supports the integration of renewable energy and improves grid resilience by facilitating cross-border power flows.

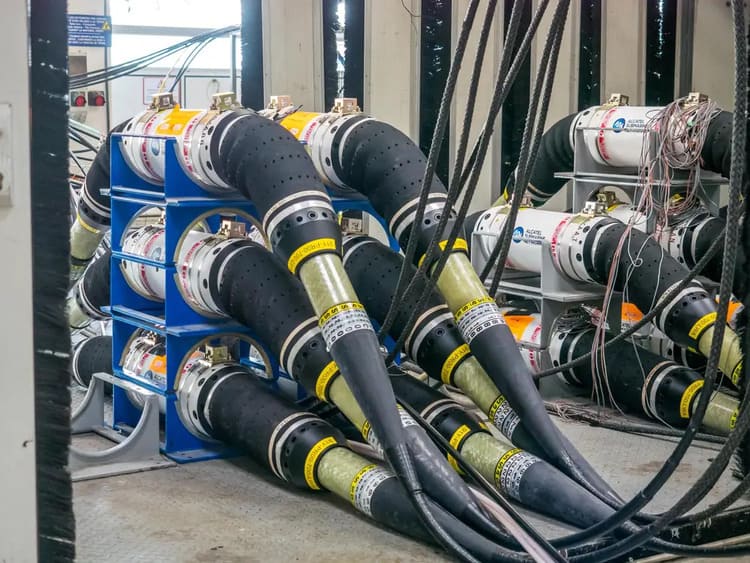

COBRAcable

The COBRAcable, also known as the COBRA Interconnector, links the grids of Denmark and the Netherlands with a 325-kilometer undersea cable in the North Sea. This interconnector enables the exchange of renewable energy, enhances supply security, and promotes market integration. It plays a crucial role in the European electricity market, fostering cooperation and facilitating renewable energy transition.

Future Developments And Advancements

Submarine Cable

The field of undersea electricity cables continues to evolve, driven by technological advancements and the growing demand for efficient and sustainable power transmission. Exciting future developments are expected to shape the landscape of undersea cable projects. Here are some key areas of advancement:

Increased Power Capacity

Future undersea cables will witness significant advancements in power capacity. Researchers and engineers are exploring innovative cable designs and materials to enhance power-carrying capabilities, allowing for higher transmission capacities and greater efficiency. Also, this will support the integration of larger renewable energy projects and enable the transfer of substantial amounts of electricity over long distances.

HVDC And Smart Grid Integration

High Voltage Direct Current (HVDC) technology is increasingly deployed in undersea cable projects. HVDC offers advantages such as lower transmission losses and the ability to transmit power over longer distances. Future developments will focus on integrating HVDC systems with innovative grid technologies, enabling improved monitoring, control, and management of power flows. Moreover, this integration will enhance grid stability, support renewable energy integration, and facilitate cross-border power trading.

Improved Cable Protection

Ongoing advancements in cable protection techniques will ensure enhanced resilience and reliability of undersea electricity cables. Research is being conducted to develop more robust insulation materials and protective coatings that can withstand extreme environmental conditions, such as higher pressures, temperature fluctuations, and corrosive seawater. Advanced monitoring systems will also be deployed to promptly detect and mitigate potential cable faults or damage.

Subsea Power Grids

The concept of subsea power grids is gaining traction to transmit electricity over long distances beneath the ocean efficiently. Subsea power grids would interconnect multiple undersea cables, enabling power exchange and distribution between offshore energy sources, such as wind farms, wave energy converters, and tidal power installations. Furthermore, this concept can potentially create extensive offshore power networks, unlocking new renewable energy generation and distribution opportunities.

Autonomous Cable Installation

Advancements in robotics and autonomous systems will revolutionize the cable installation process. Also, future developments may involve uncrewed surface vessels, underwater drones, and remotely operated vehicles (ROVs) with sophisticated sensors and automation capabilities. These autonomous systems will streamline cable laying operations, reduce human intervention, and enhance efficiency and safety during installation and maintenance activities.

Environmental Considerations

Future developments will prioritize minimizing the environmental impact of undersea cable projects. Efforts will focus on improving cable burial techniques, developing eco-friendly materials, and implementing stringent environmental monitoring and mitigation measures. Innovations in cable route planning and surveying will ensure minimal disturbance to marine ecosystems, while ongoing research will assess and mitigate any long-term ecological effects.

FAQs

Undersea Electric Cables

  1. How long does it take to lay an undersea electricity cable? The time required to lay an undersea electricity cable depends on various factors such as cable length, water depth, and seabed conditions. On average, it can take several weeks to several months to complete the installation process.
  2. Are undersea electricity cables prone to damage? Undersea electricity cables are designed to withstand harsh underwater conditions and are built with robust insulation and protective materials. However, they can be susceptible to damage from natural events like earthquakes and human activities such as fishing or anchoring near the cables.
  3. Can undersea electricity cables carry renewable energy? Undersea electricity cables can transmit electricity generated from renewable sources such as offshore wind farms. These cables are crucial in integrating renewable energy into the grid and facilitating its distribution across continents.
  4. How are undersea electricity cables maintained? Undersea electricity cables require regular maintenance and inspections to ensure their optimal performance. Moreover, specialized vessels and remotely operated vehicles (ROVs) are used for underwater inspections, and if necessary, repairs are conducted by skilled technicians.
  5. What is the cost of laying undersea electricity cables? The cost of laying undersea electricity cables can vary depending on cable length, water depth, and project complexity. Furthermore, it involves significant upfront investment, with prices ranging from millions to billions of dollars, considering the specialized equipment, vessel rentals, and workforce required for installation.

Conclusion

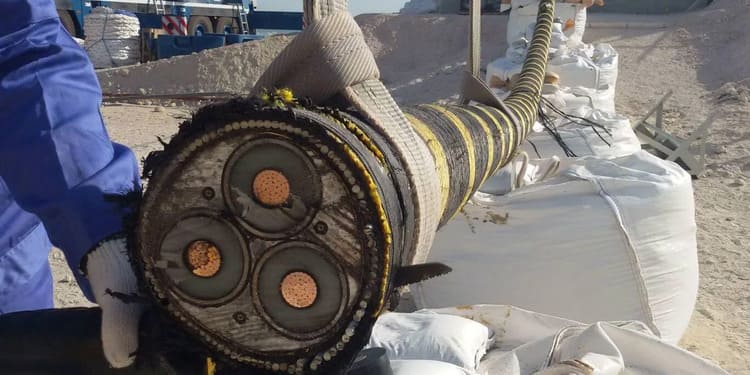

Subsea Power Cables

Undersea electricity cables have revolutionized how electricity is transmitted across continents, fostering intercontinental connectivity and enabling the exchange of energy resources. Also, with their significance in energy transmission, undersea wires contribute to a more sustainable and interconnected world.

We can expect further innovations as technology advances, paving the way for a cleaner and more efficient energy future.
