Solar Cell Parameters And Characteristics Of A Photovoltaic Cell

Solar Cell Parameters And Characteristics Of A Photovoltaic Cell

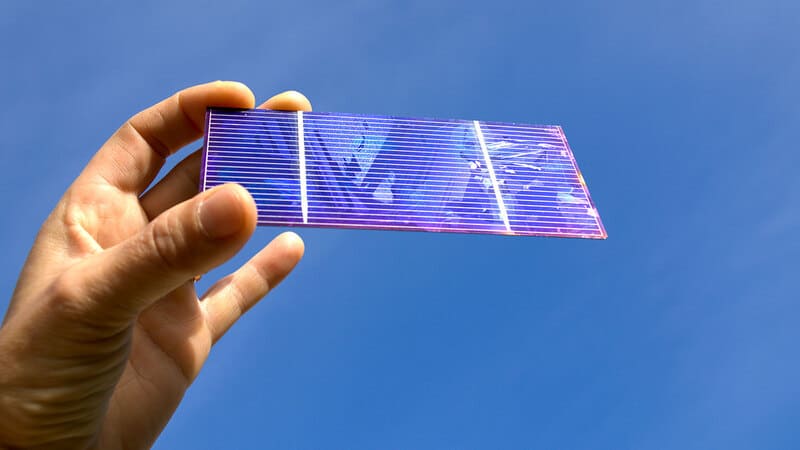

Solar Cell

Solar energy has emerged as a promising renewable energy source, and photovoltaic cells play a crucial role in converting sunlight into electricity. Understanding the parameters and characteristics of these solar cells is essential for maximizing their efficiency and harnessing the sun’s power. This article will delve into the critical aspects of solar cell parameters and explore the characteristics that define their performance.

Understanding Solar Cell Parameters

Solar cells, also known as photovoltaic cells, are semiconductors that convert sunlight directly into electricity through the photovoltaic effect. Here are the key parameters that characterize solar cell performance, essential for optimizing their efficiency and application.

Efficiency (η)

Solar cell efficiency is a critical parameter that quantifies the conversion of sunlight into usable electrical energy. It is defined as the ratio of the electrical power output to the incident solar power. High efficiency ensures maximum utilization of the sun and is influenced by factors such as material properties, design, and manufacturing processes.

Open-Circuit Voltage (Voc)

The open-circuit voltage is the maximum voltage a solar cell can produce when no external load is connected. It is primarily determined by the bandgap of the semiconductor material used in the cell. A higher Voc indicates better energy harvesting potential and compatibility with various applications.

Short-Circuit Current (Isc)

The short-circuit current represents the maximum current the cell can deliver when its terminals are short-circuited. Isc is directly proportional to the intensity of incident light and the area of the cell. Enhancing Isc involves optimizing light absorption and charge carrier transport within the cell.

Fill Factor (FF)

The fill factor characterizes the overall quality of a solar cell’s electrical output. It is the ratio of the maximum power point (Pmax) to the product of Voc and Isc. FF considers losses due to recombination, resistance, and other non-ideal effects within the cell. Higher fill factor values indicate improved electrical performance.

Maximum Power Point (Pmax)

The maximum power point combines voltage and current at which the solar cell generates its highest electrical power output. Achieving a high Pmax involves balancing the trade-off between Voc and Isc while minimizing losses due to resistive effects.

Quantum Efficiency (QE)

Quantum efficiency measures the percentage of photons the solar cell absorbs that generate electron-hole pairs. It is wavelength-dependent and reflects the cell’s responsiveness to different portions of the solar spectrum. A broader and higher QE spectrum corresponds to a more comprehensive range of usable wavelengths and increased overall efficiency.

Incident Photon-to-Current Efficiency (IPCE)

IPCE quantifies the ratio of collected photocurrent to the incident photon flux at a specific wavelength. It provides insight into the spectral sensitivity of the solar cell and aids in identifying optimal materials for particular applications.

Temperature Coefficient

The temperature coefficient defines how a solar cell’s performance parameters change with temperature variations. A negative temperature coefficient for voltage and current is desirable, as it reduces losses at elevated temperatures.

Types Of Solar Cells

Solid Oxide Fuel Cell

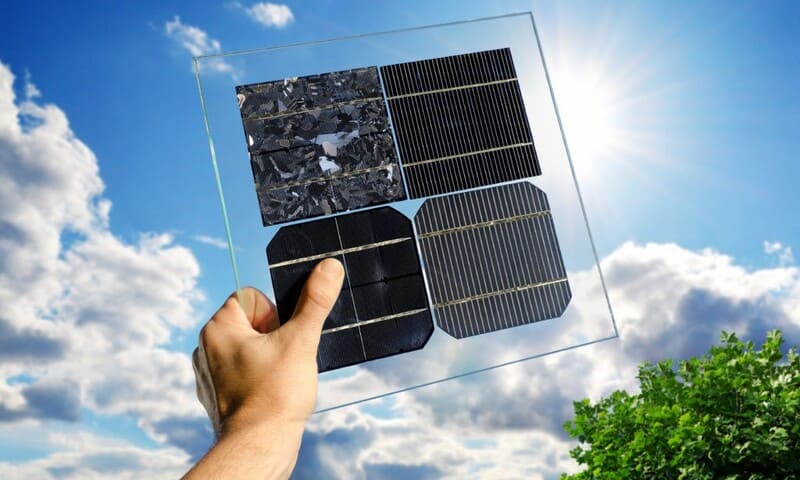

Solar cells, also known as photovoltaic cells, play a pivotal role in harnessing renewable solar energy and converting it into usable electricity. These devices utilize the photovoltaic effect to convert sunlight directly into electrical energy. Over the years, various types of solar cells have been developed, each with unique materials, structures, and efficiency characteristics.

Monocrystalline Silicon Solar Cells

Monocrystalline silicon solar cells, often called single-crystal cells, are known for their high efficiency and uniform appearance. These cells are made from a single crystal structure, producing excellent electron flow. Their efficiency typically ranges from 15% to 22%. While space-efficient and perform well in low-light conditions, their production process is energy-intensive and costlier than other types.

Polycrystalline Silicon Solar Cells

Polycrystalline silicon cells, or multi-crystalline cells, are made from multiple silicon crystals, leading to a lower efficiency level than monocrystalline cells, usually around 13% to 16%. However, they are easier and cheaper to produce, making them a cost-effective choice for many applications. They have a bluish hue and are less efficient in converting sunlight to electricity, but advancements have improved their efficiency and overall performance.

Thin-Film Solar Cells

Thin-film solar cells are manufactured by depositing thin layers of photovoltaic materials onto a substrate, such as glass, plastic, or metal. This category includes various technologies like amorphous silicon (a-Si), cadmium telluride (CdTe), and copper indium gallium selenide (CIGS) cells. Thin-film cells are lightweight, flexible, and have lower manufacturing costs. However, they generally exhibit lower efficiency, ranging from 10% to 12%, and require larger installation areas to generate significant power.

Tandem Solar Cells

Tandem solar cells, or multi-junction cells, are designed to increase efficiency by stacking multiple layers of different photovoltaic materials on top of each other. Each layer captures different portions of the solar spectrum, enhancing overall energy conversion. Tandem cells can achieve remarkably high efficiencies of over 40%, making them suitable for specialized applications like space missions and concentrated photovoltaics.

Organic Solar Cells

Organic solar cells employ organic molecules or polymers to capture sunlight and convert it into electricity. These cells are lightweight flexible, and can be manufactured using low-cost techniques such as roll-to-roll printing. However, their efficiency is currently limited, ranging from 5% to 10%. Research is ongoing to enhance their efficiency and stability, which could open doors for applications like wearable electronics and portable chargers.

Operating Conditions And Temperature Effects Of A Solar Cell

Solar cells, the heart of solar energy systems, are influenced by various operating conditions, with temperature being a critical factor.

Temperature Effects On Solar Cells

Temperature significantly affects the efficiency and performance of solar cells. Generally, solar cells experience a decrease in efficiency as temperature rises. This is due to the nature of semiconductor materials used in solar cells. As temperature increases, the movement of electrons within the material becomes more energetic, increasing electron-hole pairs. This phenomenon, known as the “temperature coefficient,” can reduce solar cell efficiency by around 0.4% to 0.5% per degree Celsius increase in temperature.

Operating Temperature Range

Solar cells are designed to operate within a specific temperature range, often called the “operating temperature.” The typical operating temperature range for most solar cells is between -20°C and 50°C (-4°F to 122°F). However, temperatures in real-world applications can often exceed these limits. Extreme temperatures can lead to performance degradation, reduced efficiency, and permanent damage.

Hot And Cold Weather Effects

In hot weather, solar cells experience reduced efficiency due to increased temperature. High temperatures can exacerbate the temperature coefficient effect, decreasing power output. To mitigate this, some solar installations incorporate cooling mechanisms to maintain lower operating temperatures, improving overall efficiency.

Conversely, cold weather conditions can also impact solar cell performance. Frigid temperatures can cause crystalline structures within the solar cells to contract, potentially leading to microcracks or other structural damage. Additionally, snow accumulation on the surface of solar panels can block sunlight and hinder energy production. In such cases, proper panel tilting or snow removal may be necessary.

Strategies For Temperature Management

To counter the adverse effects of temperature on solar cell performance, several strategies are employed:

    • Passive Cooling. Designing solar panels for better heat dissipation and airflow can naturally cool the cells.
    • Active Cooling. Incorporating cooling systems like fans or heat sinks can help regulate solar panel temperatures.
    • Thermal Insulation. Implementing insulation beneath solar panels can help reduce heat transfer to the cells.
    • Temperature-Dependent Algorithms. Advanced solar energy systems use algorithms that optimize output and adjust operating parameters based on temperature.

Series And Parallel Connections

Cell Solar

To harness solar energy effectively, it’s essential to understand and employ various connection techniques, primarily series and parallel connections, which enable the creation of efficient and reliable photovoltaic systems.

Series Connection

Solar cells are linked end-to-end in a series connection, forming a chain-like configuration. The positive terminal of one cell is connected to the negative terminal of the adjacent cell, resulting in a cumulative increase in the overall voltage output while the current remains constant. This arrangement is akin to adding the voltages of each cell together.

Series connections are beneficial when higher voltages are required to match the operating characteristics of specific applications or devices. The combined voltage of the cells can reach levels necessary for charging batteries, operating high-voltage appliances, or feeding electricity into the grid. However, it’s crucial to note that the current passing through the entire series remains uniform, and if one cell’s performance is compromised, the output of the whole series may decrease.

Parallel Connection

Conversely, in a parallel connection, the positive terminals of multiple cells are interconnected, as are the negative terminals. This layout results in a collective increase in the overall current capacity while maintaining a consistent voltage output. Think of it as pooling the currents of individual cells.

Parallel connections are particularly advantageous when higher current output is needed to match specific energy demands. They benefit applications like powering low-voltage devices and maintaining consistent performance even if one cell experiences reduced efficiency. It’s essential to recognize that in a parallel configuration, the voltage remains the same across all cells, and any reduction in cell efficiency might impact the overall system performance, especially in situations where voltage requirements are stringent.

Combining Series And Parallel Connections

Hybrid configurations are often employed to optimize the benefits of both series and parallel connections. Combining cells in both series and parallel makes achieving the desired voltage and current balance for a given application possible. This approach ensures higher efficiency energy harvesting and enhanced system reliability.

Factors Influencing Efficiency Loss

Efficiency loss in solar cells, a vital component of photovoltaic technology, can stem from many factors hindering sunlight conversion into electricity.

Material Quality And Purity

The efficiency of a solar cell dramatically relies on the quality and purity of the materials used in its construction. Impurities, defects, and non-uniformities within the semiconductor material can trap charge carriers, leading to energy loss through recombination. Ensuring high material quality through meticulous manufacturing processes mitigates efficiency loss.

Absorption And Reflection

Efficiency loss can result from inadequate absorption of sunlight due to the material’s limited light-absorbing capacity in specific wavelengths. Additionally, some incident light may be reflected away from the solar cell’s surface, reducing the photons available for conversion. Nanostructured coatings and anti-reflective layers enhance light absorption and minimize reflection, thereby addressing this loss factor.

Temperature Effects

Elevated operating temperatures can cause a decline in solar cell efficiency. As temperature rises, the intrinsic carrier concentration of the semiconductor material increases, leading to higher electron-hole recombination rates. Implementing effective thermal management systems to dissipate excess heat can alleviate this efficiency-sapping phenomenon.

Mismatched Bandgaps

Different sub-cells with distinct bandgaps are stacked in multi-junction solar cells to capture a broader range of the solar spectrum. However, if the bandgaps are not correctly matched, this can lead to inefficient energy conversion. Optimizing the bandgap alignment and utilizing advanced materials can mitigate this mismatch-related loss.

Carrier Recombination

Efficiency loss occurs when charge carriers (electrons and holes) recombine before contributing to the electric current. Surface recombination, Auger recombination, and Shockley-Read-Hall recombination divert carriers from the external circuit. Surface passivation, defect reduction, and proper material selection are strategies to curb carrier recombination losses.

Electrical Losses

Internal resistance in a solar cell’s components, including the metal contacts and the semiconductor material, can lead to voltage drops and power dissipation. These electrical losses reduce the overall output power of the cell. Designing low-resistance contact structures and optimizing the material properties can mitigate these losses.

Dust And Contamination

Accumulation of dust, dirt, or other contaminants on the solar cell surface can hinder light transmission, leading to reduced absorption and, hence, lower efficiency. Regular cleaning and maintenance are essential to minimize this loss factor, particularly in regions with high airborne particles.

Light Trapping And Photon Management

Inefficient light trapping within the cell can lead to photons escaping without contributing to energy conversion. Advanced optical structures, such as textured surfaces and light-trapping layers, can extend the optical path length, increasing the likelihood of photon absorption and reducing this loss.

Advancements In Photovoltaic Technology

Solar Cells

Photovoltaic (PV) technology, commonly known as solar technology, has witnessed remarkable advancements in recent years. This technology harnesses the power of sunlight to generate electricity, offering a sustainable and renewable energy source. The ongoing research and development efforts in photovoltaics have led to significant efficiency, cost-effectiveness, and versatility improvements, propelling solar energy to become a mainstream energy solution.

Enhanced Solar Cell Efficiency

One of the primary focuses of PV technology advancement has been enhancing solar cell efficiency. Traditional silicon-based solar cells have given way to advanced materials like perovskite and multi-junction cells. These new materials can convert a broader spectrum of sunlight into electricity, resulting in higher efficiency. Additionally, novel approaches like bifacial solar cells, which capture sunlight from both sides of the panel, further augment energy output.

Thin-Film Solar Technology

Thin-film solar technology has gained prominence due to its lightweight, flexible nature and ease of integration into various surfaces. Innovations in thin-film materials such as amorphous silicon, cadmium telluride, and copper indium gallium selenide (CIGS) have improved efficiency and durability. This technology enables applications in unconventional settings, including curved surfaces and building-integrated photovoltaics (BIPV).

Tandem Solar Cells

Tandem solar cells, or multi-junction cells, stack multiple layers of solar-absorbing materials to capture a broader range of light wavelengths. By efficiently converting different parts of the solar spectrum into electricity, tandem cells can achieve higher efficiencies than traditional single-junction cells. This technology is up-and-coming for concentrated photovoltaic systems and space applications.

Perovskite Solar Cells

Perovskite solar cells have emerged as a game-changer in the PV industry. These cells offer the advantages of low production costs, easy manufacturing, and high power conversion efficiencies. Ongoing research aims to address perovskite’s stability and durability issues, thereby paving the way for their commercial viability on a large scale.

Bifacial Solar Panels

Bifacial solar panels have revolutionized energy capture by utilizing light reflected from surrounding surfaces. This innovative approach enhances the overall energy yield of a solar panel by capturing light from both the front and rear sides. Through advanced modeling and design, the optimal arrangement of bifacial panels in various environments is being explored to maximize energy generation.

Improved Energy Storage Solutions

Advancements in photovoltaic technology are not limited to energy generation alone. Integration with energy storage solutions, such as lithium-ion batteries and emerging technologies like flow batteries, enables the efficient utilization of solar energy even during non-sunlight hours. This integration promotes grid stability and makes solar energy more reliable.

Smart Photovoltaic Systems

The advent of digitalization and the Internet of Things (IoT) has led to the development of intelligent photovoltaic systems. These systems incorporate sensors, monitoring, and control mechanisms to optimize energy production, diagnose system issues, and enhance overall performance. Real-time data analysis allows for predictive maintenance, reducing downtime, and increasing system lifespan.

FAQs

How Do Solar Cells Work

  1. Are solar cells only used in sunny regions? Solar cells can be used in various areas, but their efficiency depends on sunlight.
  2. Do solar panels work during cloudy days? Yes, solar panels can still generate electricity on cloudy days, although their efficiency is reduced.
  3. How long do solar cells typically last? Solar cells can have a 25 to 30 years or more lifespan, with gradual efficiency decline over time.
  4. Can I install solar panels myself? While possible, hiring professionals for proper installation is recommended to ensure safety and efficiency.
  5. Are there government incentives for installing solar panels? Many countries offer incentives such as tax credits or subsidies to encourage solar panel installation. It’s worth researching local policies.

Conclusion

Solar cell parameters and characteristics are fundamental to understanding the efficiency and performance of photovoltaic cells. As technology evolves, harnessing the sun’s power through these cells is critical to a sustainable energy future.
